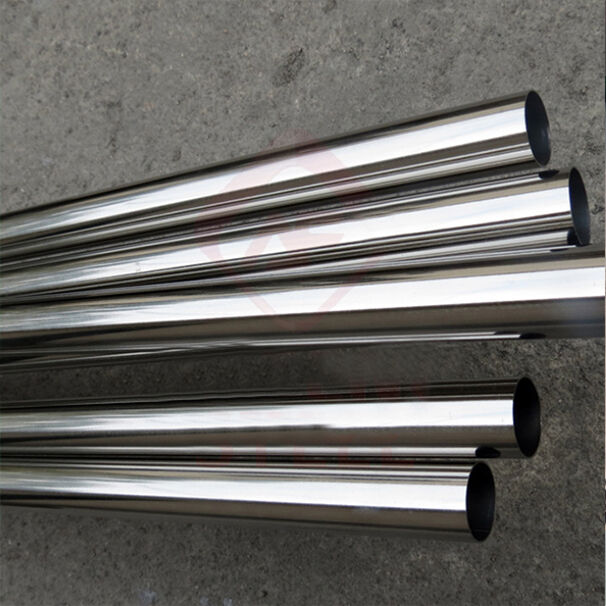

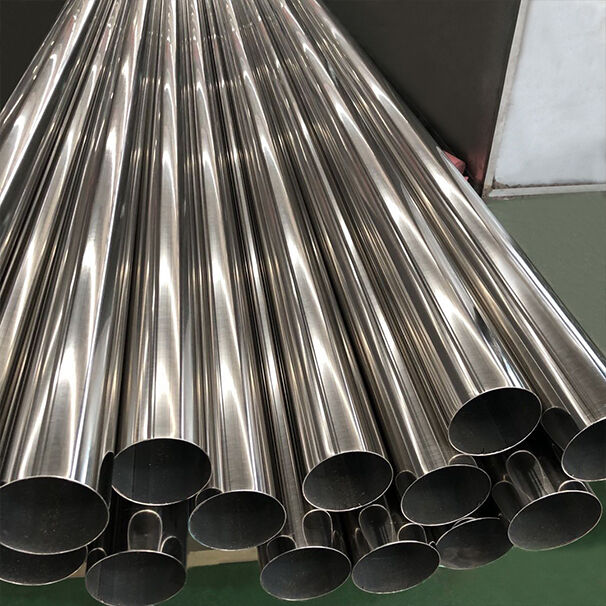

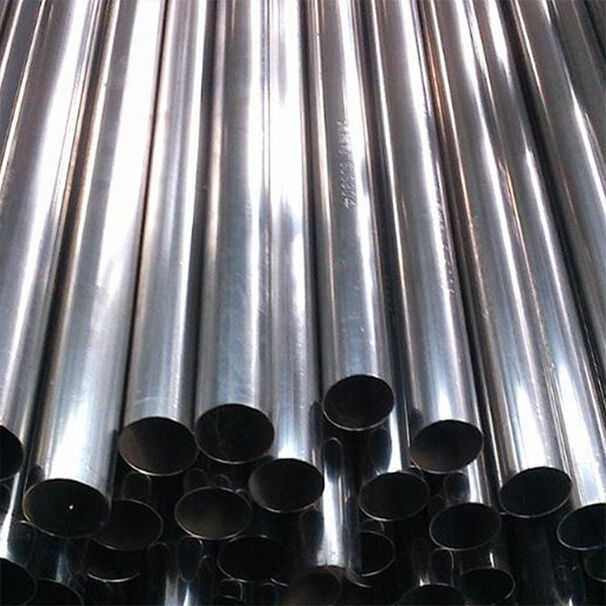

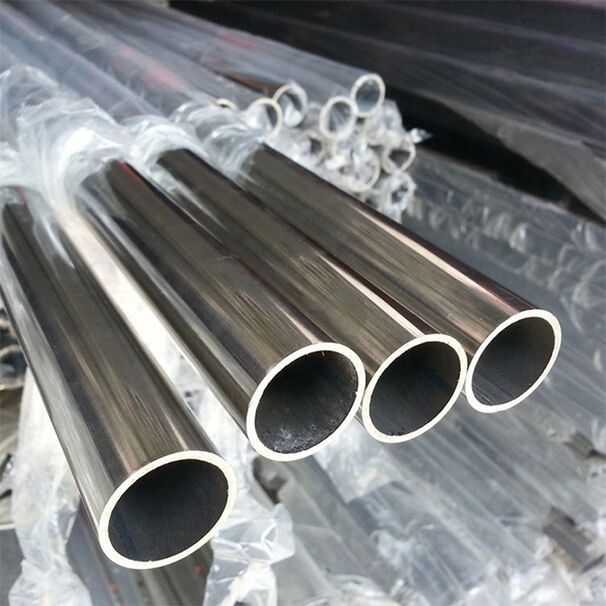

316/306L No.4 Stainless Steel Pipe
Contact person：Martin
Tel：+86 186 1561 8035
Email： martin@tgpxsteel.com
What’app：+86 186 1561 8035
Skype：+86 186 1561 8035
Add：Huitong Logistics Park,Liaocheng Development Zone, Shandong Province, China
CONTACT US

Product Description

　　Standard: ASTM, AISI, DIN, EN, GB, JIS

　　Dimensions: 3mm-800mm

　　Grade: 200 series ,300 series ,400 series

　　Place of Origin: Shandong, China (Mainland)

　　Brand Name: Tisco,Lisco,Zpss,Baosteel, Tisco,Lisco,Baosteel,Zpss

　　Model Number:201/202/303/304/304L/316/316L/321/2520, 304L




1.Detailed pipes we could supply:

Seamless pipeRound pipeOut diameter:1/8"-24"(6mm-630mm).
Wall thickness:ANSI 5S-160S (0.9mm-100mm)
Square pipe
20x20x-200x200:thickness2-50mm
rectangular pipe
10x20-150x100,thickness:2-50mm
Hex pipeOut hex or RoundInside bore or hexFlat to flat 16-70mm,thickness:3-10mmWith drawing
Oval tube
With drawing
Welded typeRound pipeOut diameter:OD6-2500MM
Wall thickness:Thickness:1-50mm
Square pipe
10x10-200x200,thickness1-3mm
Rectangular pipe
10x20-150x100,thickness:1-3mm
Oval tube
As drawings
Manufacture Standard:

ASTMA213/312/269/511/789/790,GOST9940/9941,DIN17456/17458/

EN10206/17440JIS3459/3463,GB13296/14976/9948/5310/8142/8143

Stainless steel

TP304,304L,304H,304N,316,316L,316Ti,317L,310S,321,321H,347H,S31803, S32750,347,330,825,904L,

12X18H9,08X18H10,03X18H11,08X18H10T,20X25H20C2,08X17H13M2T,08X18H12E1.4301, 1.4306,

1.4401, 1.4404, 1.4435, 1.4541, 1.4571, 1.4563, 1.4462, 1.4845,

SUS304, SUS304L, SUS316, SUS316L, SUS321, SUS310S etc.

Nickel alloy

Hastelloy: UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035,

N06030, N06635, N10003, N06002, R30188,N06230, R30556 Inconel: UNS N06600, N06601,

N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925,

N08926Monel: UNS N04400,

N05500Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH,

15-7PHNickel: N4/UNS N02201, N6/UNS N02200

Titanium and titanium alloyGR1,GR2,GR5,GR7,GR9,GR12
Centrifugal casting tube57-1200mm OD
Cobalt alloy pipecustomed sizes
Process methods:cold drawn, cold rolling,welded
Surface & Delivery condition:Solution annealed and pickled, grey white (polished),with plain ends/bevel edges ends,Hairline
Length:Max25 meters
Packing:in seaworthy wooden cases or in bundles
Min order quantity:0.5 ton each size for common steel.
Delivery date:soonest or discussible
Certificates:ISO9001:2000 quality system and Mill test Certificate supplied



Our Products Rang:
Steel pipe,Stainless Steel bars, Pipes & Tubes - Welded, Seamless Duplex Steel Pipe And Fittings
Fasteners
Wire rope and rope fittings
Nickel Alloy Steel Pipe And Fittings
Titanium Pipe and Titanium Bars,Flanges, Fitting
Centrifugal casting tube

Material supply
Stainless Steels - 304, 304H, 304L, 316, 316H, 316L, 321, 321H, 347, 310, 410, 410S, 904L etc
Duplex Steel - UNS 31803 (Duplex), UNS 32750 / UNS 32760 (Super Duplex)/2205 etc
Nickel Alloy Steel- Alloy B/ N10001, Alloy B2/N10665, Alloy B3/N10675, Alloy C4/N06455, Alloy C22/N06022, Alloy C276/N10276, Alloy C2000/N06200, Alloy G35/N06035, Alloy G30/N06030, Alloy S/N06635, Alloy N/N10003, Alloy X/N06002, Alloy 188/R30188, Alloy 230/N06230, Alloy 556/R30556 Alloy 600/ N06600, Alloy 601/N06601, Alloy 617/N06617, Alloy 625/N06625, Alloy 718/N07718, Alloy X750/N07750, Alloy 800/N08800, Alloy 800H/N08810, Alloy 800HT/N08811, Alloy 825/N08825, Alloy 925/N09925, Alloy 926/N08926/Alloy 400/ N04400, Alloy K500/N05500
Precipitation-hardening Steels- 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
Titanium :TA1  TA2 TC4, ASTM B337,ASTM B338,ASTM B861,ASTM B862
Cobalt alloy:umco50
Centrifugal casting pipes,reformer tube,radiant tube,heat resistant steel etc


General Require of ASTMA213/M


StandardItemsASTM A213/A213M
Steel grade TP301                  TP304L
TP316                  TP316L
TP317                  TP310L
TP347                  TP310S
TP347H△              TP310H *
TP309H*               TP321H△
Rp0.2(Mpa)≥170 ; ≥205
Rm(Mpa)≥485 ; ≥515
A(%)    ≥35
Flatten experiment(mm)H=1.09t/(0.09+t/D)
 flaring testInside diameter 21-68%
Grain size"*"," △ "ASTM E112/  "△ "7#or above7#"*"6#or above6#
hydrostatic test (Mpa) D PmaxP=220.6t/D

<25.47

25.4-<38.110

38.1-<50.814

50.8-<76.217

76.2-<12724

≥12731
Crystalcorrosion testASTM A262
nondestructive inspectionASTM  E213  E309  E426
Heat treatment (solid solution)    required
Out-diameter tolerance(mm) ODTOLERANCE

<25.4±0.10

25.4-≤38.1±0.15

>38.1-<50.8±0.20

50.8-<63.5±0.25

63.5-<76.2±0.30

76.2-≤101.6±0.38

>101.6-≤190.5±0.38/-0.64

>190.5-≤228.6±0.38/-1.14
Thickness tolerance(mm) ODTOLERANCE

≤38.1+20%-0

>38.1+22%-0
straightness(mm/m)REASONABLE
HARDNESSHRB<90


2.chemical composition

Chemical Composition of Material         Material  Composition201202304316L430
C≤0.15≤0.15≤0.08≤0.035≤0.12
Si≤1.00≤1.00≤1.00≤1.00≤1.00
Mn5.5-7.57.5-10≤2.00≤2.00≤1.00
P≤0.06≤0.06≤0.045≤0.045≤0.040
S≤0.03≤0.03≤0.030≤0.030≤0.030
Cr13-1514-1718-2016-1816-18
Ni0.7-1.13.5-4.58-10.510-14
Mo


2.0-3.0


3.mechanical property

Mechanical PropertyMaterial Item    201202304316
Tensile Strength≥535≥520≥520≥520
Yield Strength≥245≥205≥205≥205
Extension≥30%≥30%≥35%≥35%
Hardness (HV)<105<100<90<90








Q1. Where is your factory ?

A1: Our company's processing center is located in Shandong, Jinan, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers' needs.

Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.

Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.

Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
